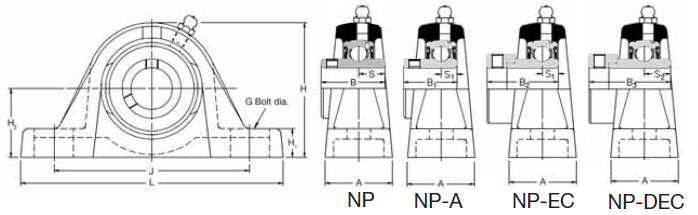

Pillow Block Bearing (NP/UCP)

NP2

  • Bore Size (d)2inch
  • Bolt Hole Centres (J)162.5/178.5mm
  • Total Length (L) 219.5mm
  • Height (H) 129.5mm
  • Housing Width (A) 60mm
  • Shaft Height (H2) 63.5mm

NP20 UCP 204

  • Bore Size (d) 20mm
  • Bolt Hole Centres (J)88.5/100.5mm
  • Total Length (L) 127mm
  • Height (H)65.2mm
  • Housing Width (A) 32.5mm



NP25

  • Bore Size (d) 25mm
  • Bolt Hole Centres (J)96.8/112.7mm
  • Total Length (L) 139mm
  • Height (H) 71mm
  • Housing Width (A) 38mm



NP30

  • Bore Size (d) 30mm
  • Bolt Hole Centres (J)108.5/129.5mm
  • Total Length (L) 160.5mm
  • Height (H) 82.7mm
  • Housing Width (A) 41.5mm

NP35 (UCP207

  • Bore Size (d) 35mm
  • Bolt Hole Centres (J)121.5/136.5mm
  • Total Length (L) 166mm
  • Height (H) 93mm
  • Housing Width (A) 44.4mm
  • Shaft Height (H2) 47.6mm



NP40 UCP208

  • Bore Size (d) 40mm
  • Bolt Hole Centres (J)127/148mm
  • Total Length (L) 180.5mm
  • Height (H) 98.5mm
  • Housing Width (A) 51mm
  • Shaft Height (H2) 49.2mm



NP50 UCP210

  • Bore Size (d) 50mm
  • Bolt Hole Centres (J) 154/163mm
  • Total Length (L) 206mm
  • Height (H) 115.2mm
  • Housing Width (A) 55mm
  • Shaft Height (H2) 57.2mm

NP55 UCP211

  • Bore Size (d) 55mm
  • Bolt Hole Centres (J)162.5/178.5mm
  • Total Length (L) 219.5mm
  • Height (H) 129.5mm
  • Housing Width (A) 60mm
  • Shaft Height (H2) 63.5mm

NP65 UCP213

  • Bore Size (d) 65mm
  • Bolt Hole Centres (J)176/205mm
  • Total Length (L) 250mm
  • Height (H) 144.3mm
  • Housing Width (A) 70mm
  • Shaft Height (H2) 69.9mm

NP1 1/2 UCP208-24

  • Dimension Bore: 38.1
  • Weight: 2100g
