Tapered roller bearings

BE 30215

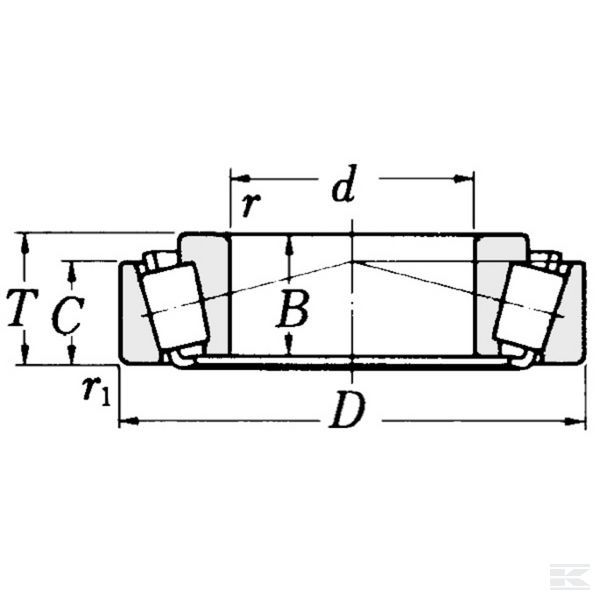

(B) Inner ring width 25 mm
(C) Outer ring width 22 mm
(T) Width 27.25 mm
(d) Inside diameter 75 mm
(D) Outside diameter 130 mm

BE 44643

(B) Inner ring width 14.732 mm
(C) Outer ring width10.67 mm
(d) Inside diameter 25.4 mm
(r) Max shaft radius 1.3 mm
(T) Width 31.623 mm
(D) Outside diameter 50.292 mm
Info bearing clearance 0,254 mm

BE 32208

(B) Inner ring width 23 mm
(C) Outer ring width19 mm
(d) Inside diameter 40 mm
(D) Outside diameter 80 mm
(T) Width 24.75 mm
Ref rotation speed5000 r/min
Basic radial load dynamic 79,000 N
Basic radial load static 93,000 N

BE 32209

(B) Inner ring width 23 mm
(C) Outer ring width19 mm
(T) Width 24.75 mm
Ref rotation speed 4600, r/min
(d) Inside diameter 45 mm
(D) Outside diameter 85 mm
Basic radial load dynamic 82,000 N, Basic radial load static 99,000 N

BE 32210

(B) Inner ring width 23 mm
(C) Outer ring width19 mm
(T) Width 24.75 mm
Ref rotation speed 4300 r/min
(d) Inside diameter 50 mm
(D) Outside diameter 90 mm
Basic radial load dynamic 87,000 N Basic radial load static119,000 N

BE 32212

(B) Inner ring width 31 mm
(C) Outer ring width 27 mm
(T) Width 32.75 mm
Ref rotation speed 3200 r/min
(d) Inside diameter 65 mm
(D) Outside diameter120 mm
Basic radial load dynamic156,000 N
Basic radial load static 200,000 N

BE 45449/45410

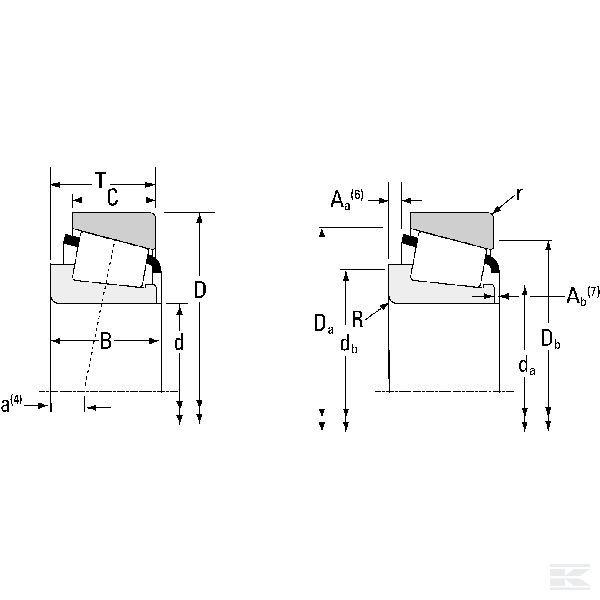

(B) Inner ring width14.732 mm
(C) Outer ring width10.67 mm
(T) Width 14.224 mm
(d) Inside diameter 29 mm
(r) Max housing radius1.3 mm
(D) Outside diameter 50.292 mm
(R) Max shaft radius 3.5 mm

BE 48548/48510

(B) Inner ring width18.288 mm
(C) Outer ring width13.97 mm
(d) Inside diameter 34.925 mm
(r) Max housing radius1.3 mm
(R) Max shaft radius 3.5 mm
(T) Width18.034 mm
(D) Outside diameter 65.088 mm

BE 89449/89410

(B) Inner ring width 28.575 mm
(C) Outer ring width 23.02 mm
(T) Width 29.37 mm
(d) Inside diameter 36.512 mm
(r) Max housing radius 3.3 mm
(D) Outside diameter 76.2 mm
(R) Max shaft radius 3.5 mm

TIMKEN TAPERED ROLLER BEARING CATALOG
