Top Link Assembies

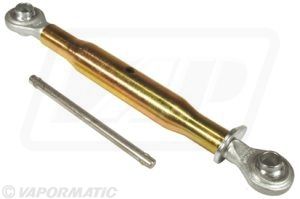

Example image

PART No: VLK1100

  • LH threaded end category - 0
  • RH threaded end category - 0
  • Tractor end type - Ball
  • Min operating length - 274mm
  • Max operating length - 416mm
  • Centre tube length - 190mm
  • Thread size - 3/4" UNC

Equivalents:: A-TL03 - A & I, 38150-71100 - Kubota, 3405318M91 - Massey Ferguson

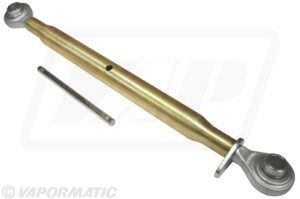

Example image

VLK1002

  • LH threaded end category: 2
  • RH threaded end category: 2
  • Tractor end type: Ball
  • Min operating length: 546mm
  • Max operating length: 806mm
  • Centre tube length: 405mm
  • Thread size: 1" 1/8 UNC
    Equivalent: to A-TL08 - A & I
Example image

VLK1003

  • Weight: 4.05kg
  • LH threaded end category: 1
  • RH threaded end category: 1
  • Tractor end type: Ball
  • Min operating length: 620mm
  • Max operating length: 838mm
  • Centre tube length: 508mm
  • Thread size: 1" 1/8UNC
Example image

VLK1007

  • Weight: 3.041kg
  • LH threaded end category: 1
  • RH threaded end category: 1
  • Tractor end type: Ball
  • Min operating length: 400mm
  • Max operating length: 610mm
  • Centre tube length: 268mm
  • Thread size: 1 1/8UNC
