V-BELTS

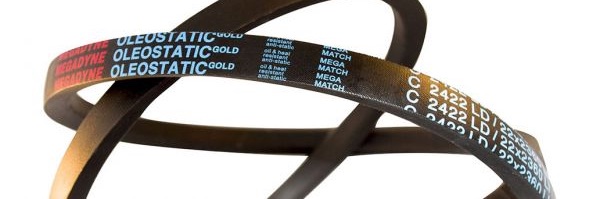

OLEOSTATIC GOLD

OLEOSTATIC GOLD is the top of the line in wrapped V-belts. It can operate in a wide range of industrial applications, with an ample spread of load capacities and speeds, offering rated performance from 100 to 8,000 RPM and power capability from 1 to 400 kW.

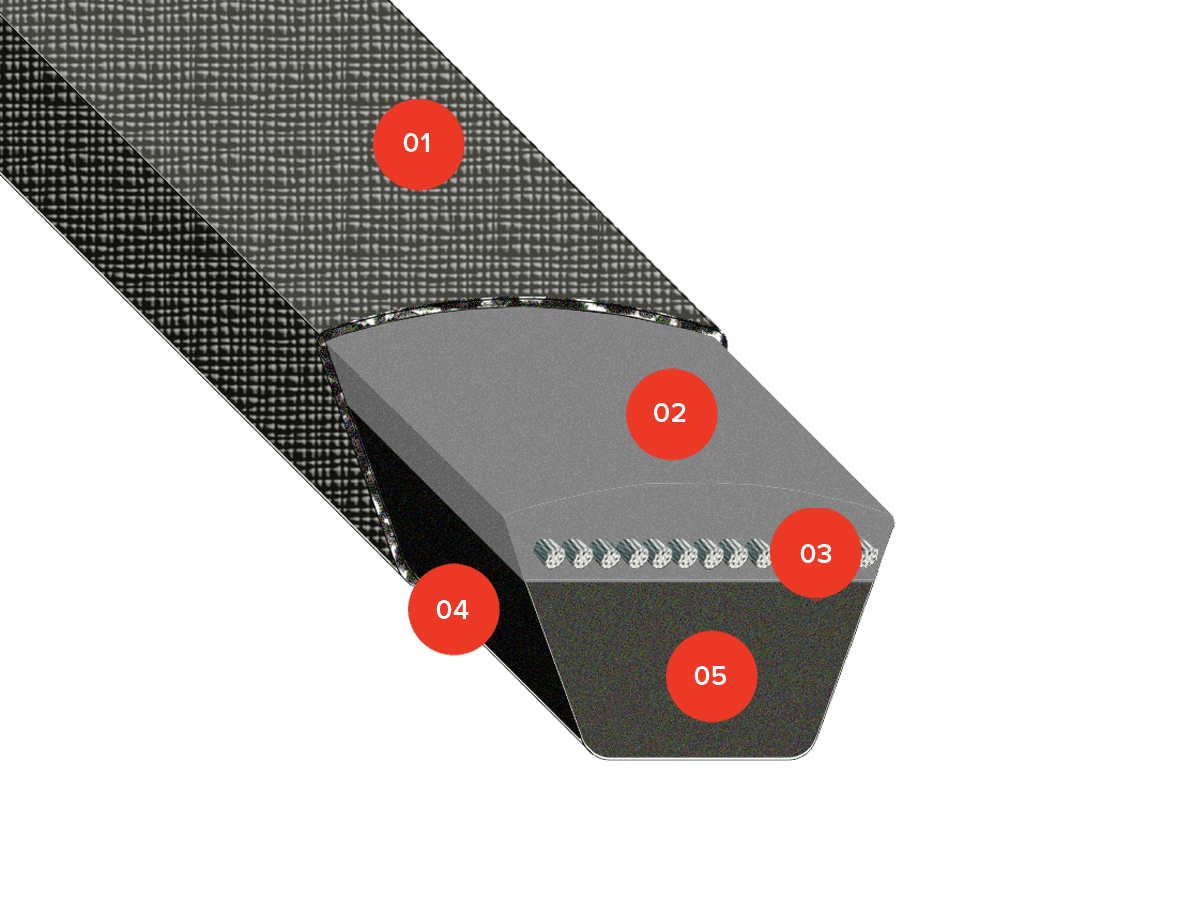

MAIN COMPONENTS

01 / FABRIC
double cover ply – CR Dip

02 / TOP CUSHION
SBR compound + fibers

03 / TENSILE CORD
H.T. polyester

04 / BOTTOM CUSHION
SBR compound + fibers

05 / BODY COMPOUND
polycloroprene (CR) based



MECHANICAL AND CHEMICAL PROPERTIES

  • smooth starting and running
  • wide range of driven speed
  • extremely wide horsepower ranges
  • vibration damping between driver and driven pulleys
  • no need for lubrication
  • long service life and lower maintenance costs
  • antistatic properties according to ISO1813
  • OLEOSTATIC GOLD belt working temperature -30°C/+80°C

Belt Section SPA

SPA1032, SPA1060, SPA1082, SPA1107, SPA1180, SPA1207, SPA1282, SPA1382, SPA1457, SPA1757, SPA2882, SPA950,

Belt Section SPB

SPB1400, SPB1500, SPB1600, SPB1800, SPB2500, SPB2650

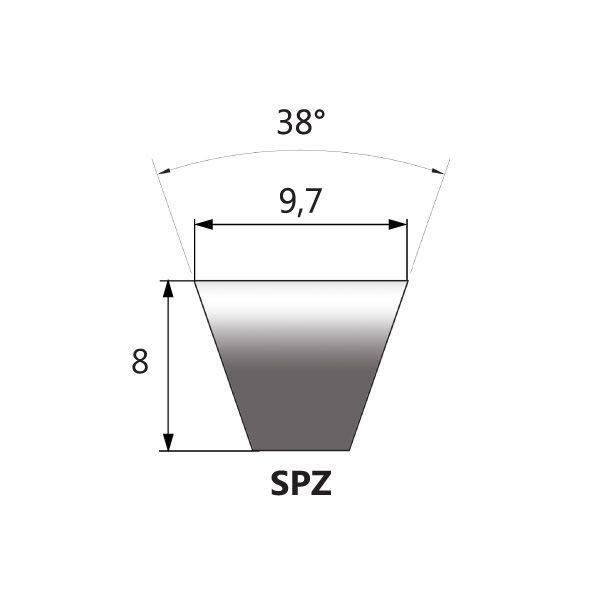

Belt Section SPZ

SPZ1000, SPZ1010, SPZ1024, SPZ1037, SPZ1060, SPZ1250, SPZ1300, SPZ1337, SPZ1400, SPZ1420, SPZ1500, SPZ1700, SPZ1737, SPZ1800, SPZ1837, SPZ2160, SPZ487, SPZ545, SPZ612, SPZ630, SPZ670, SPZ722, SPZ737, SPZ750, SPZ760, SPZ762, SPZ787, SPZ800, SPZ825, SPZ850, SPZ862, SPZ912,SPZ937, SPZ950, SPZ692, SPZ987

Please contact us on 01249 652937 to order, or if you need any help identifying what you need.
